BAUMR-AG 3200W 280mm Wet/Dry Core Drill w/ Wheeled Stand & 127mm Bit Combo, for Concrete Coring Hole Drilling

For Members only

$986.39
Don't Pay $1,565.99 RRP
$1,095.99
SAVE $470.00 (30%)
  • In stock
Product Code : DZ

Earn $1095.99 * 10% = $109.60 Splash Pass Credit

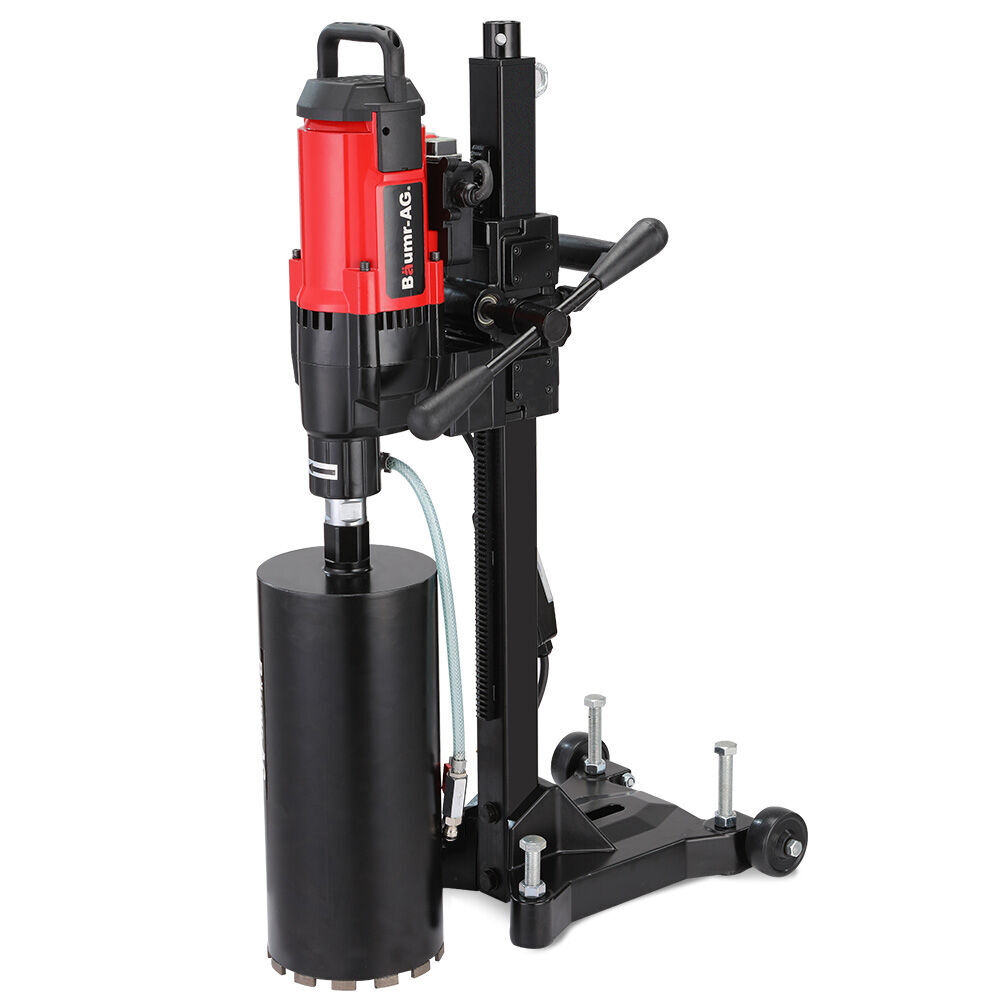

Take on demanding drilling tasks with this high-performance Baumr-AG Diamond Core Wet/Dry Drilling Machine with Wheeled Stand 127mm Drill Bit Combo. Featuring a powerful 3200W motor and 20-280mm max drilling capacity, youll cut through reinforced concrete, red brick, and granite with ease.

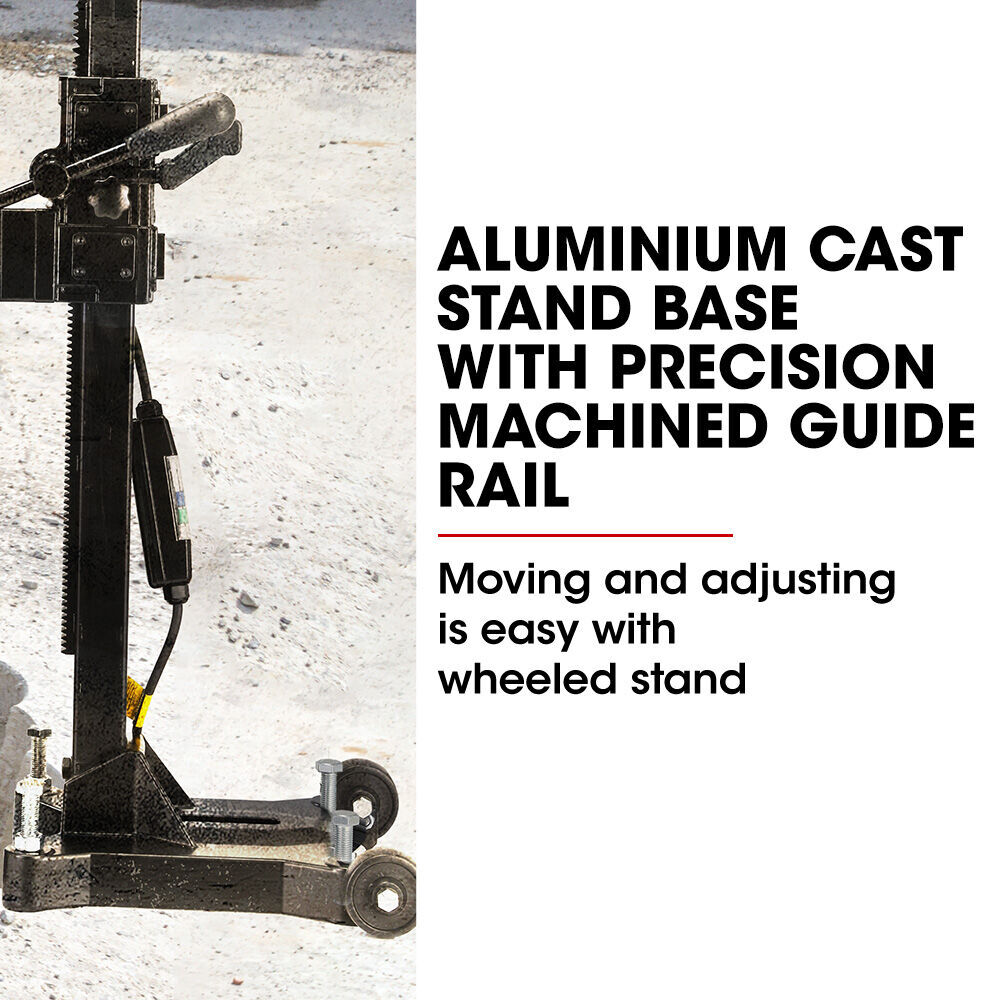

The adjustable wheeled stand provides stability and precision, mounting from 0-90 degrees for versatile positioning. Built to last, its IP54-rated aluminium construction ensures durability in harsh conditions.

Designed for professionals, this rig offers safety-enhancing features like an automatic slip-clutch, inline circuit interrupt switch, and double insulation for operator protection.

Buy Smart. Buy Baumr-AG.

  • Heavy-duty 3200W commercial-grade motor for consistent power
  • 280mm maximum drilling diameter
  • Includes 127mm diamond core drill bit for reinforced concrete, red brick, and granite

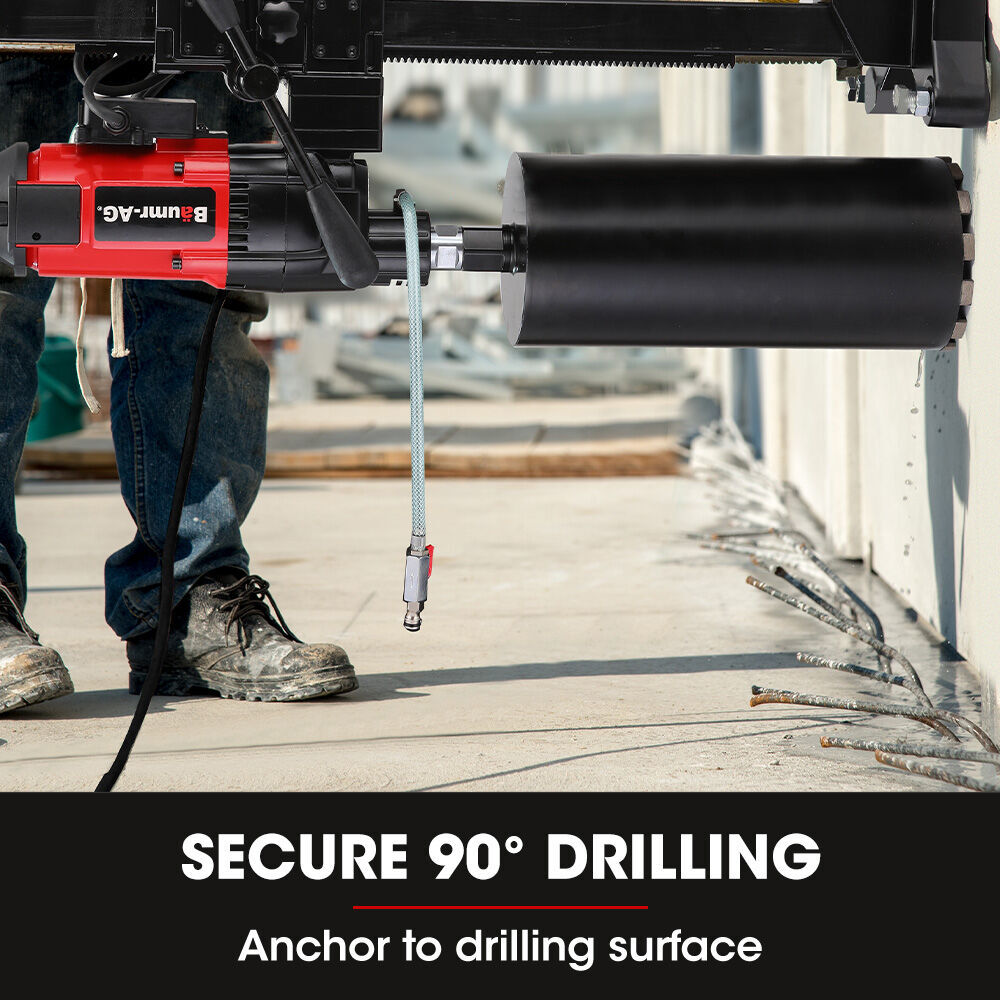

  • Adjustable stand mounts from 0 to 90 degrees for vertical and horizontal drilling
  • Wheeled base for effortless positioning and stability
  • Copper motor for high reliability
  • Slip-clutch system prevents overload and sudden bit seizing
  • 550 RPM single speed for smooth and controlled drilling
  • IP54 rating for dust protection and splash resistance
  • Aluminium construction for durability in tough environments
  • Steel-forged drill shaft ensures long-lasting performance
  • 1 ¼ inch UNC standard-sized spindle thread
  • The copper water inlet is corrosion proof
  • Non-slip handle for a secure grip and fatigue reduction
  • Double insulation for motor and operator protection

SPECIFICATION

280mm Core Drill

  • Input Power: 240V 50Hz AC
  • Rated Output Power: 3200W
  • Cooling method: Air
  • No load speed: 550r/min
  • Speeds: 1
  • Drilling Diameter Range: 20-280mm
  • Spindle Thread: 1-1/4" UNC
  • Coring Type: Wet/Dry Coring
  • Construction Material:
  • Drill: Aluminium Chassis, Steel Forged Output Shaft, Copper Water Inlet, Copper Motor
  • Stand: Aluminium Guide Rail, Steel Base
  • IP Rating: IP54

Diamond Core Drill Bit - 127mm

  • Cutting Diameter: 127mm
  • Length: 10mm
  • Type: Hole Cutter
  • Featured Refinements: Hole Saw
  • Shaft Material: Commercial Grade Steel
  • Cutting Teeth Material: Diamond/Steel Blend
  • Thread SIze: 1 1/4 UNC
  • Cutting Teeth Length: 10mm
  • Threaded Connection: 1 1/4 UNC

IN THE BOX

  • 1 x Baumr-AG Core Drill
  • 1 x Drill Rig (Assembly Required)
  • 1 x Baumr-AG Diamond Core Drill Bit
  • Note: User Manual is accessible online

SIZE WEIGHT

280mm Core Drill with Stand

  • Product Dimensions (W x D x H): 260 x 520 x 930mm
  • Product Weight: 28kg
  • Carton Dimensions (W x L x H): 320 x 100 x 440cm
  • Carton Weight: 32kg

Diamond Core Drill Bit - 127mm

  • Product Dimensions: 127mm x L455mm
  • Product Weight: 3.5kg
  • Carton Dimensions (W x L x H): 44 x 14 x 13cm
  • Carton Weight: 4kg
